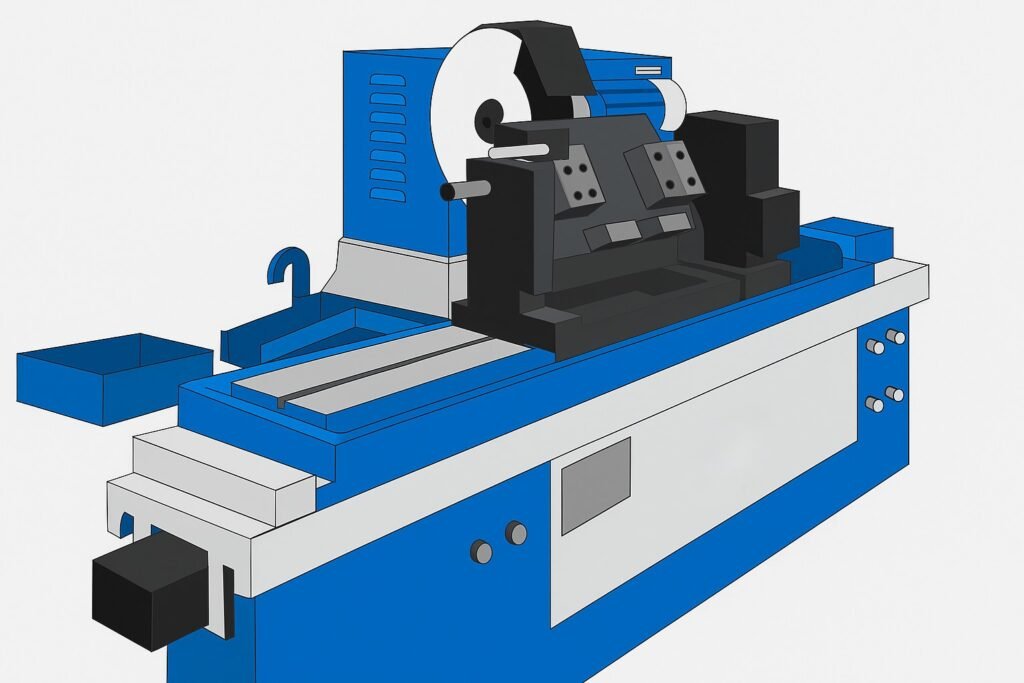

Cannula Grinding Machine
Request Quote
Cannula Grinding Machines designed for medical needle production with maximum consistency,
automation and productivity.
Machine Gallery
Technical Specifications
| Specification | Hydraulic | Semi Automatic | Fully automatic |
|---|---|---|---|
| Grinding Wheel Dia | 400mm | 400mm | 400mm |
| Mini. Dia of warn out wheel | 230 mm Approx | 230 mm Approx | 230 mm Approx |
| Table Traverse | Hyrdraulic Cylinder | ball screw/operated by servo motor | ball screw/operated by servo motor |
| Wheel Head Motor | 7 Hp, Three Phase, 415V,50HZ | 7 Hp, Three Phase, 415V,50HZ | 7 Hp, Three Phase, 415V,50HZ |
| Wheel Head Movement | Hydraulic Cylinder | Servo Motor | Servo Motor |
| Load bar feeding system | Manually | Both option available | 400-600mm stroke rod-less cylinder |
| Grinding Wheel Speed | 2000-2400rpm | 2000-2400rpm | 2000-2400rpm |
| Total length of machine | L=Depend upon Client Requirement (Based On Table Stroke), W= 1700mm, H= 1800mm approx | L=Depend upon Client Requirement (Based On Table Stroke), W= 1700mm, H= 1800mm approx | L=Depend upon Client Requirement (Based On Table Stroke), W= 1700mm, H= 1800mm approx |
Request Information
Need pricing, specifications or customization details?
