This machine is developed around the customer component, production requirement, process sequence, and quality expectation. Final configuration is confirmed after sample study, URS review, and concept approval.
Machine detail

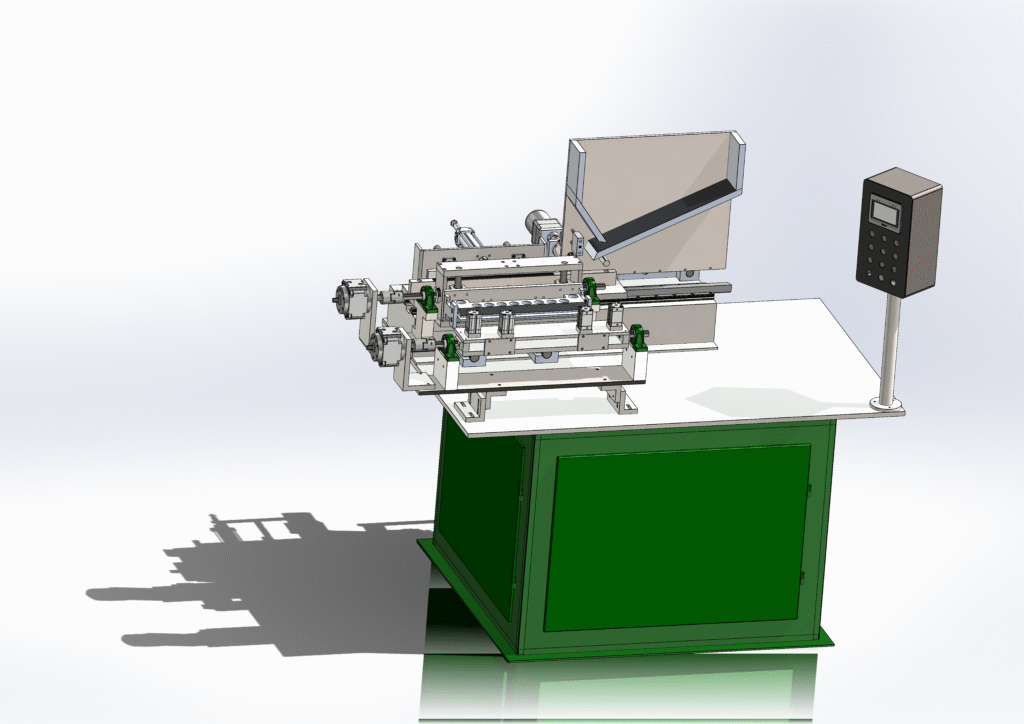

Tube Setting Machine
Controlled tube loading into magazine for next process of grinding
Technical details
Specifications and process notes.
This are general Specifications of Machine and can be customized according to your requirements.
- Machine Model
- Fully Automatic
- Capacity
- Depends on the gauge and required production
- Production Output
- Finalized after process study and trial requirement
- Power Requirement
- As per machine configuration
- Air Requirement
- 5- 7 kpa
- Automation Level
- Manual, semi-automatic, or fully automatic as required
- Workpiece
- Small-diameter metal or polymer tube
- Core Process
- Positioning, setting, or forming
- Feed and Handling
- Manual, magazine, or automatic feed
- Controls
- Industrial PLC and HMI, brand finalized with the customer
- Inspection
- Sensor, vision, or dimensional checks available as required
- Safety
- Interlocked guarding and risk-assessed operating sequence
- Dimensions
- Frozen after sample study, URS review, and concept approval
Process view
Engineered around your component and production target.
Key features
Designed around customer component and process requirement.
Optional attachments
Sensor, vision, feeding, transfer, and inspection options available as required.
